Thermo-Calc 2022b Available Now

Thermo-Calc 2022b is released June 2022 and includes a new look and feel for improved user experience, plot themes for easy export of consistent images, the introduction of our first ever ultra-high temperature materials database, and much more.

Webinar on Thermo-Calc 2022b Release

thermo calc 2022b

Join our release webinar to learn about the exciting new features and new databases included in Thermo-Calc 2022b. In this webinar, three of the developers who worked on the release will speak directly about these exciting new developments.

New Look and Feel

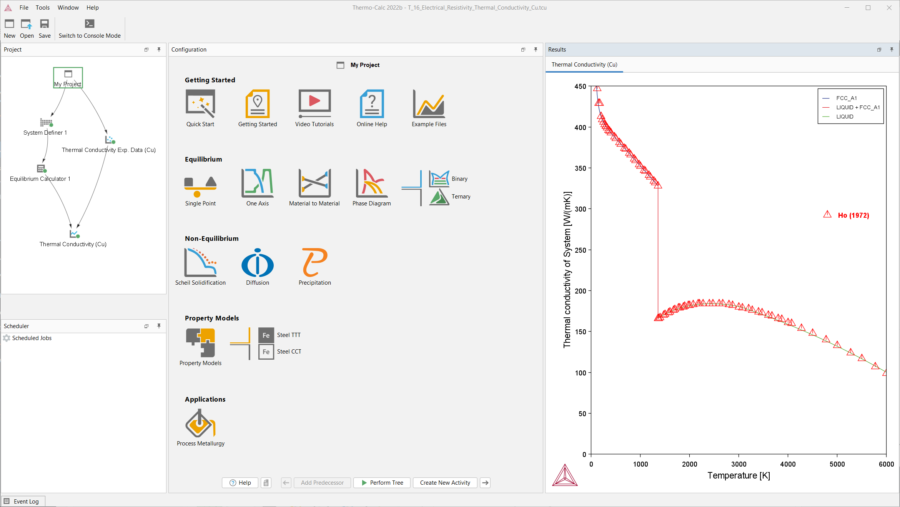

Thermo-Calc has a new look and feel with the 2022b release. The primary purpose is to improve the user experience and offer a more modern presentation. Thermo-Calc has expanded in recent years with new modules and property libraries. To address this, the homescreen has been reorganized into categories to help users more easily locate modules and resources. A Getting Started section has also been added to the homescreen to help users learn about or gain a deeper understanding of the software.

Additionally, all of the icons in the software have been updated with a simpler, more modern feel so that they are easy to identify on the range of screen sizes and resolutions in use today. The overall appearance of the software, such as the buttons and form fields, has also been simplified to make it easier to navigate through the program.

Improved_look_and_feel_2022b_T_16

Plot Themes

Thermo-Calc 2022b introduces plot themes, which allow users to save custom plot settings to easily use them again and ensures consistency when exporting plots. Users can define plot size, colors, fonts, image quality, and more. When plots with the same theme are generated in the software or exported to an image file, they will have consistent sizing and appearance. You can save themes for presentations, reports, publications, or any other instance in which you want to maintain consistency.

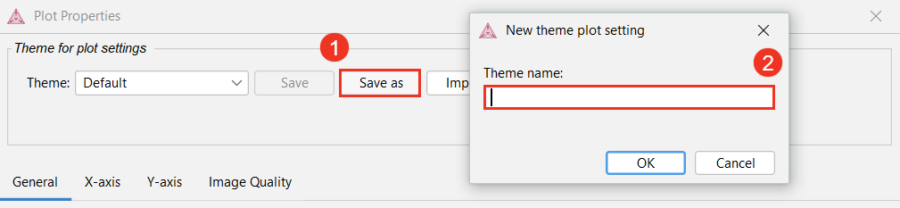

Saving new plots themes is easy and can be done directly from the Plot pane. Right click on a plot and select Properties. Define your plot settings, then click Save As to name the new theme.

save-new-plot-themes_1

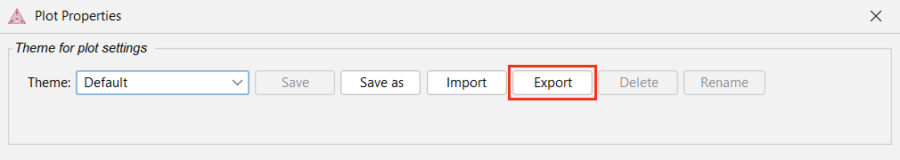

Themes can be exported and shared with others to keep plots consistent among those you work with.

export-plot-themes_01

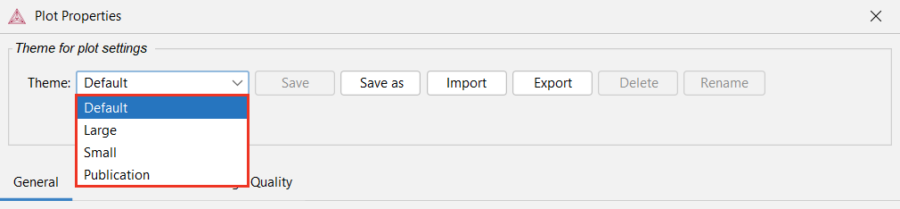

Thermo-Calc 2022b comes with four predefined plot themes, and users can choose which theme will be used as the default.

predefined-plot-themes_01

Plot themes are available in both Graphical and Console mode.

Process Metallurgy Module in TC-Python and TC-Toolbox for MATLAB®

The Process Metallurgy Module is now available in both TC-Python and TC-Toolbox for MATLAB®, our two most powerful APIs. All functionality that is currently available in the Graphical Mode version of the Process Metallurgy Module is now available in both of these APIs, including equilibrium calculations and kinetic process simulations.

The strength of the Process Metallurgy Module is that thermodynamic calculations and even full simulations of a liquid steelmaking process, such as a ladle furnace, can be set up easily, and the results can be easily interpreted. For example, slag composition is directly available per component (CaO, Al2O3, FeO, Fe2O3, etc…), not only per element.

The integration into the APIs now gives the full power of a programming language to the Process Metallurgy Module. But it also makes it easier to use for integrating calculations and process simulations directly with the data available in steel plants, for example, from a data warehouse. However, such integrations currently need to be developed by the user.

Five new examples are available in TC-Python and TC-Toolbox for MATLAB® to demonstrate how the Process Metallurgy Module can be used in these APIs.

pmet-in-tc-toolbox

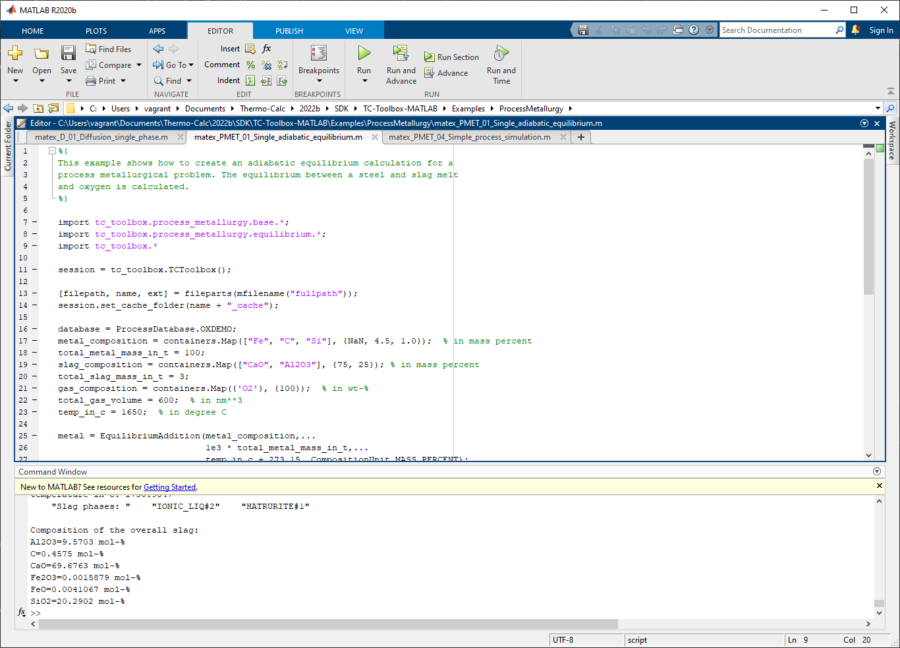

A calculation example of the Process Metallurgy Module in TC-Toolbox for MATLAB®. The examples are also available in TC-Python.

This new integration is available to users who have a license for the Process Metallurgy Module and either TC-Python or TC-Toolbox for MATLAB®. Contact your local representative to learn how to obtain a license for these powerful new tools.

Timeouts for TC-Python and TC-Toolbox Calculations

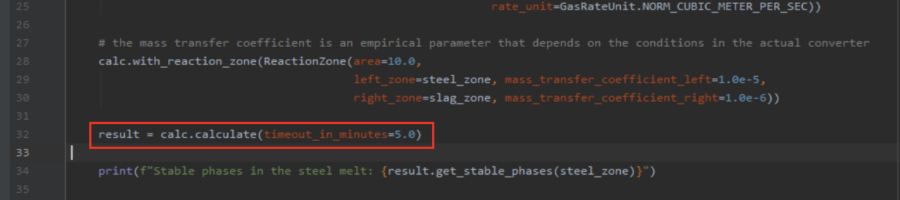

TC-Python and TC-Toolbox for MATLAB® now allow users to set timeouts for each calculation in a script in order to prevent the program from hanging on calculations that take too long. If a calculation cannot be completed in the set time, the program will move on to the next calculation, rather than aborting the entire script. The timeout parameter is set in the Calculate method and is available with all calculation types except for single equilibrium stateless calculations.

timeout-python

Reminder Legacy TC-Toolbox will be Deprecated After this Release

The legacy version of TC-Toolbox for MATLAB® will no longer be supported after this release period, ending January 2023. Users are encouraged to migrate their scripts to the new TC-Toolbox for MATLAB®, which was introduced in December 2021.

New Ferrite Model in Steel Model Library and Improved TTT and CCT Diagrams

A ferrite model has been added to the Steel Model Library. This new model describes the thermodynamics and isothermal kinetics of grain-boundary ferrite transformation from austenite. The Ferrite model can calculate diffusional growth rate constant, grain-boundary nucleation rate, and isothermal transformation times of ferrite.

The new ferrite model has also been incorporated into the TTT and CCT diagrams in the Steel Model Library. These combine the Pearlite, Bainite, Martensite, and now Ferrite Property Models and calculate the kinetics of concurrent transformation of austenite into ferrite, pearlite, bainite, and martensite.

This new ferrite model is available to users who have a license for the Steel Model Library and a valid Maintenance and Support Subscription.

A new example is available to help users learn about this new model: PM_Fe_09_Fe-C-Ni_Ferrite. Three examples have also been updated to incorporate the new ferrite model into the TTT and CCT diagrams: PM_Fe_06_Fe-C-Mn-Si-Cr-V_TTT, PM_Fe_07_Hardenability_Design_of_Steel, and PM_Fe_08_Fe-C-Mn-Si-Cr-V_CCT.

Ferrite-start-time-for_ Fe-0

The plot shows the Ferrite start time, plotted with the TTT mode in the Steel Model Library. Experimental data from H. I. Aaronson, and H. A. Domian (1966).

New Calculation Examples for Thermophysical Properties

Over the past several years, many new thermophysical properties have been added to Thermo-Calc databases, including molar volume, electrical resistivity, and thermal conductivity. The 2022b release includes new examples for both Graphical Mode and Console Mode to demonstrate how easy it is to calculate these properties with Thermo-Calc.

The 2022b release includes examples showing how to calculate the molar volume and thermal expansion coefficients of the L12-type Al3Sc and the L12-type Al3Zr, respectively. The new examples are:

  • Graphical Mode: T_15_Molar_Volume_and_Thermal_Expansion_Coefficient.tcu
  • Console Mode: tcex58.TCM and tcex59.TCM

The release also includes examples showing how to calculate the electrical resistivity (ELRS) and thermal conductivity (THCD) of pure Cu. The new examples are:

  • Graphical Mode: T_16_Electrical Resistivity_Thermal_Conductivity_Cu.tcu
  • Console Mode: tcex60.TCM

The examples can be run by anyone with a license for Thermo-Calc 2022b or newer, including those who are using the free Educational Package.

A new video is available demonstrating graphical model example T_16_Electrical Resistivity_Thermal_Conductivity_Cu:



Ten New and Updated Databases

The 2022b release includes eight new and two updated databases, including the introduction of our first database for ultra-high temperature materials.

New Databases

TCUHTM1: Ultra-high Temperature Materials Database

The Ultra-high Temperature Materials Database (TCUHTM1) is a completely new thermodynamic database for ultra-high temperature materials that can be used for hypersonic aircraft and space vehicles. These are typically non-oxides with melting/decomposition temperatures over 3000 °C. TCUHTM1 includes:

  • 7 elements: B, C, Hf, N, Si, Ta, and Zr
  • 21 binary systems
  • 26 ternary systems
  • 35 phases

TCNI12: Nickel-based Superalloys Database

  • Adds phosphorus (P) and the related 20 new binary systems and 29 new ternary systems
  • Adds Fe-Nb-Si ternary system
  • Updates to viscosity and surface tension descriptions
  • Improvements to the electrical and thermal properties
  • Updates to binary and ternary systems

MOBNI6: Nickel-based Superalloys Mobility Database

  • Adds phosphorus (P)
  • Mobility parameters for binary systems and ternary systems are added or reassessed for FCC_A1, FCC_L12, BCC_B2, and LIQUID phases

TCCU5: Cu-based Alloys Database

  • Adds two new elements, cerium (Ce) and lanthanum (La)
  • Adds 13 new binary systems and 11 new ternary systems
  • Adds volume data for new phases

MOBCU5: Cu-alloys Mobility Database

  • Adds two new elements, cerium (Ce) and lanthanum (La)
  • Adds new diffusion data for FCC_A1 and LIQUID phases
  • Assessed 5 new binary systems, 4 ternary systems, and 2 quaternary systems
  • Updated description of FCC Ni-Ti

TCHEA6: High Entropy Alloys Database

  • Adds a complete description of the gas phase in the 26 element framework
  • Adds Al-V-Zr ternary system
  • Reassessed 18 ternary systems
  • Updates to 19 ternary systems

MEPH20: Mephista-20 Nuclear Fuels Database

  • Adds chromium (Cr) and the related 14 binary systems and 6 ternary systems
  • Adds 5 pseudo-binary systems

NUCL20: NUCLEA-20 Nuclear Alloys-Oxides Database

  • Updates to Ag-In and B-Ni binary systems
  • Updated names for three ternary stoichiometric phases
  • Bug fix for BaO-CaO pseudo-binary system
  • Adds two new pseudo-ternary systems and one reassessed system

Updated Databases

TCSLD4.2: Solder Alloy Solutions Database

The solder alloy solutions database was updated to version TCSLD4.2. Users who have a license for TCSLD4 and a valid Maintenance and Support Subscription receive this upgrade for free.

  • Reassessed the Bi-Sn binary system
  • Updates to Au-Co binary system

TCMG6.3: Mg-based Alloys Database

The solder alloy solutions database was updated to version TCMG6.3. Users who have a license for TCMG6 and a valid Maintenance and Support Subscription receive this upgrade for free.

  • Remodeled Ag-Mg over the entire composition range, with a focus on the Mg-rich corner
  • Improved description of Al-Mg-Y ternary system
  • Improved description of the gas phase
