Application Example

Steel Deoxidation on Tapping

This example shows a few of the ways the Process Metallurgy Module in Thermo-Calc can be used to investigate steel deoxidation (killing) on tapping.

Relevant Topics

  • Steel deoxidation on tapping
  • Steel killing
  • Steelmaking
  • Process Metallurgy Module

About Deoxidation or “Killing” of Steel

Deoxidation of steel, also known as killing of steel, occurs toward the end of the steelmaking process, but before desulphurization. After primary steelmaking, for example in a basic oxygen furnace (BOF) or electric arc furnace (EAF), the liquid steel contains a large amount of dissolved oxygen [O] (400 to over 1000 ppm, see the example on kinetic simulation of BOF process). This oxygen must be removed from the liquid steel for several reasons, including:

  • Desulphurization is not effective with high oxygen content in the steel (see example on desulphurization)
  • Continuous casting of un-killed steel is not possible and will result in “boiling” of the steel in the mould and massive porosity, as shown in the figure.

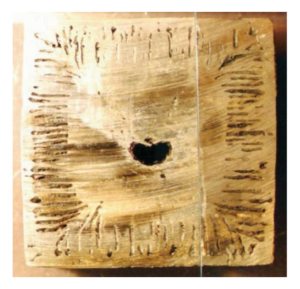

Blowholes formed during casting of a steel billet with insufficient deoxidation.

The two most widely applied methods of deoxidizing or killing the steel are adding Al (Al-killed steel) to the steel and adding Si (Si-killed steel) to the steel. These elements readily react with oxygen to form oxides that precipitate within the liquid steel. This does not reduce the total amount of oxygen in the liquid steel; it simply transforms the dissolved oxygen into an oxide precipitate. This oxide precipitate then needs to be removed from the steel by flotation during secondary metallurgy in the ladle furnace (LF).

About this Example

In this example we look at how the Process Metallurgy Module can be used to investigate these two widely applied methods of deoxidizing or killing the steel: adding Al (Al-killed steel) or adding Si (Si-killed steel). This, however, can result in the formation of damaging inclusions that cause problems during further processing, so we go on to look at two simple and very common processes that are used to transform the solid SiO2 and Al2O3 inclusions into liquid oxides so that they are less damaging.

How to Run the Calculation

To run this calculation, open Thermo-Calc and navigate to the Help Menu → Example Files… → Process Metallurgy. This example includes two calculation files:

  • PMET_08a_Steel_Deoxidation_on_Tapping: a simplified version that can be run with the free Educational Package together with the OXDEMO database.
  • PMET_08b_Steel_Deoxidation_on_Tapping: requires a full license for Thermo-Calc 2021b or newer and a license for the Metal Oxide Solutions Database TCOX11 or newer.

The example also includes a PDF with in-depth explanations of all the calculations and interpretation of the results:

Additional Examples Using the Process Metallurgy Module

The Process Metallurgy Module can be used to investigate the entire steelmaking process, from scrap to fully refined steel. The examples below investigate other steps in the steelmaking process:
